Jala–Puerto Vallarta Highway

21.8 km

LENGTH

$ 2,100 MDP

INVESTMENT

Construction and paving, structures, tunnels, drainage works and ancillary works, and signage.

Urales

Description of the works

Construction and modernization of three subsections of the Jala–Compostela section. This project was part of the construction of an A4-type highway, designed to provide modern and safe road infrastructure with the following technical characteristics:

4 lanes, each 3.5 meters wide, two in each direction.
2.5-meter shoulders.
2-meter central median barrier.
Design speed of 110 km/h

Significance

The construction of these sections, featuring advanced technical characteristics, addresses the need to improve regional connectivity in areas with complex topography, ensuring safe and efficient transportation for passengers and freight. The infrastructure was designed to accommodate high travel speeds and traffic volumes, contributing to the region’s economic and social development.

Las Varas, Section: Compostela–Las Varas, Subsection: km 64+000 to km 70+880.

Earthworks.
Drainage works.
Asphalt concrete paving.
Tunnels.
Structures.
Ancillary works.
Road signage for the Jala–Compostela Highway.

Urales

Urales

Jala–Puerto Vallarta Highway, Section: Jala–Compostela, km 46+380 to km 53+960.

Earthworks.
Drainage works.
Asphalt concrete paving.
Structures.
Ancillary works.
Road signage.

Jala–Puerto Vallarta Highway, Section: Jala–Compostela, km 0+000 to km 7+520, and ancillary works from km 7+520 to km 20+000.

Earthworks.
Drainage works.
Asphalt concrete paving.
Grade-separated interchange.
Structures.
Ancillary works.
Road signage.

Urales

Urales

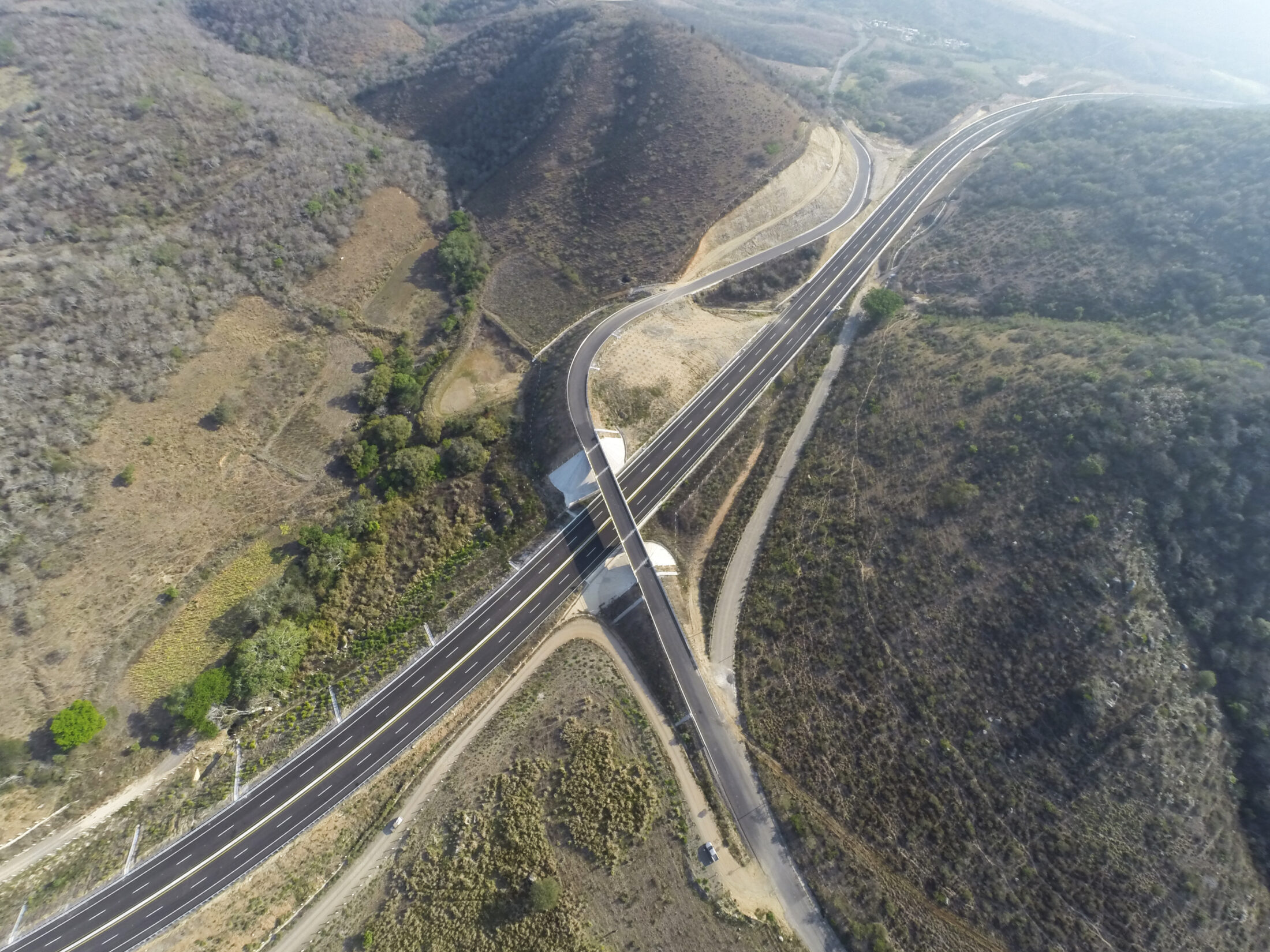

Road interchange

Construction of the Compostela II grade-separated interchange, located at km 554+697.32 of the Jala–Puerto Vallarta Highway, Jala–Compostela Section, in the State of Nayarit.
